Our Health Monitoring Device

Stay Ahead with Real-Time Health Insights.

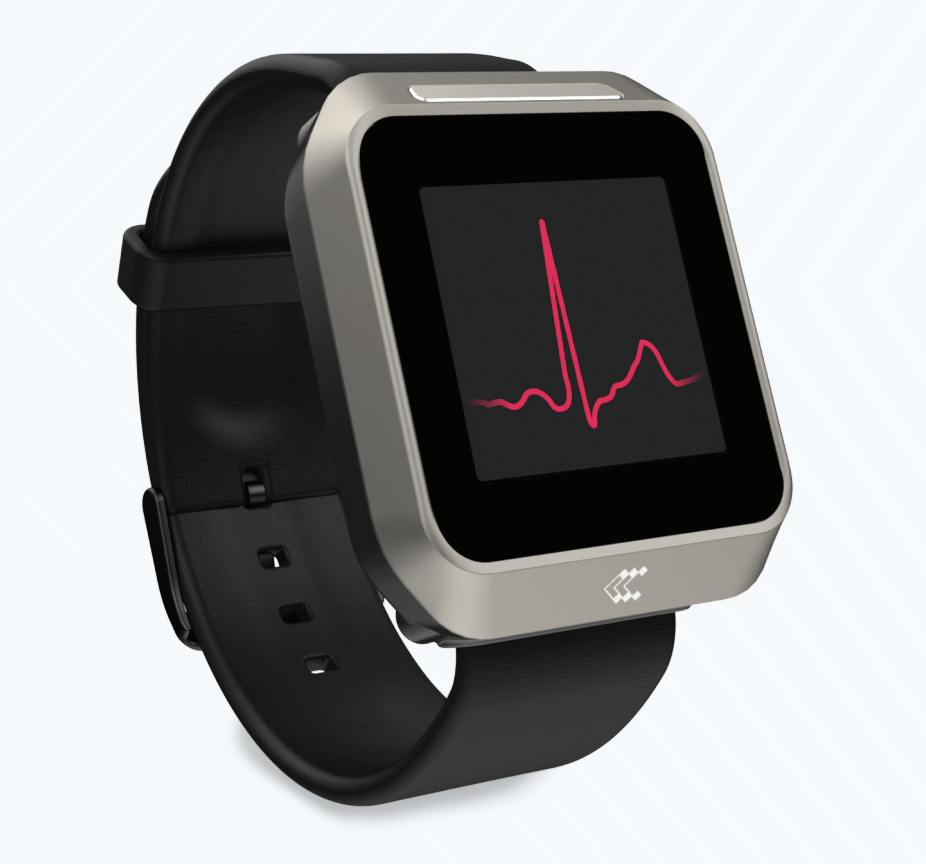

TELTOHEART

Smart heart monitoring wristband with medical-grade 6-lead ECG recording, precise detection of atrial fibrillation, and continuous heart rate measurement.

TELTOHEART

KEY FEATURES AND VALUES

TELTOHEART

MEDICAL INSTITUTION

  • Offer new telemedicine services
  • Save time with remote consultations
  • Detect heart disorders faster with new technology
  • Continuous AFib burden monitoring (coming soon)
  • ECG recording at home

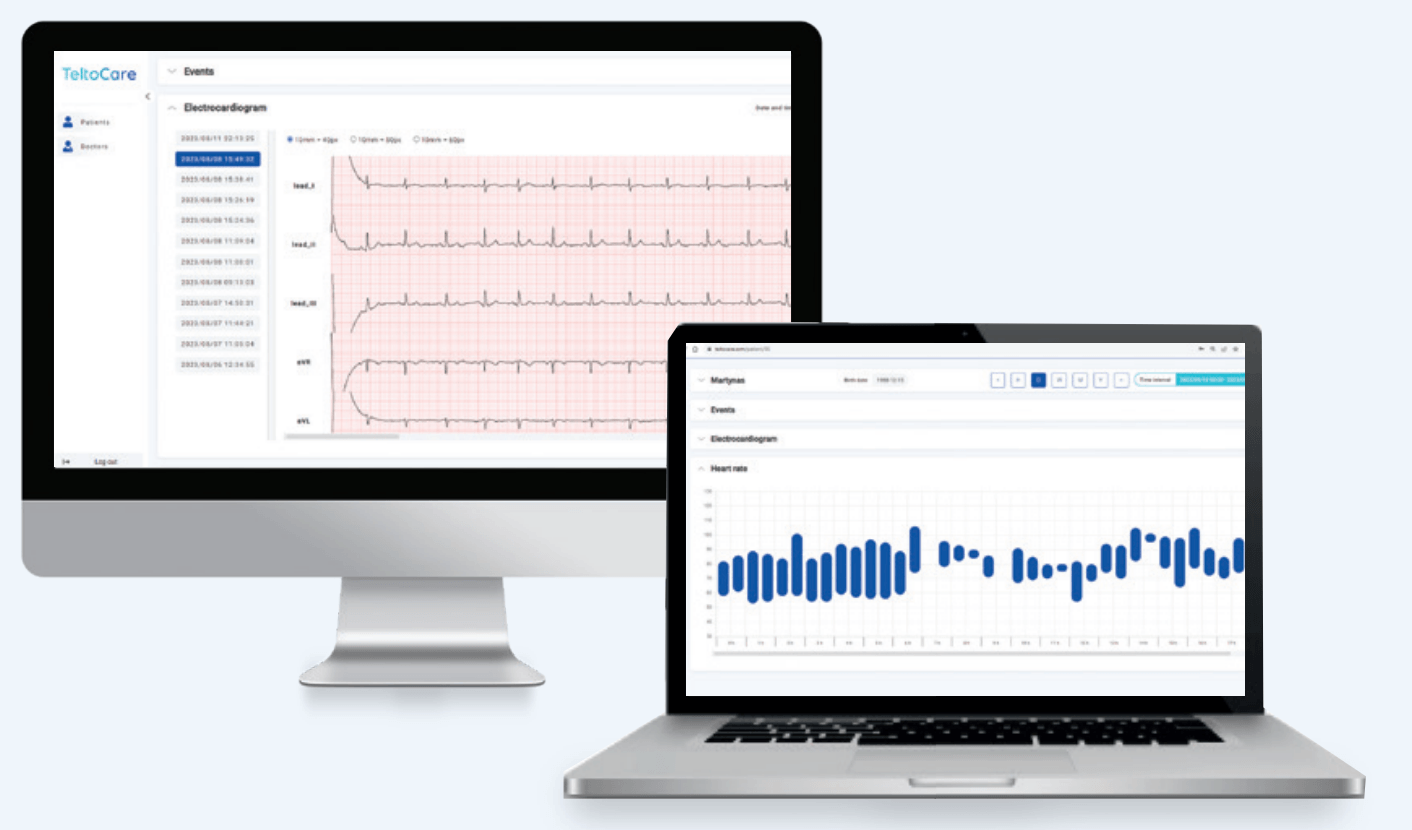

  • Access patient history and latest medical data

DISTRIBUTOR

  • Unique remote medical solution
  • Remote device diagnostics and FOTA
  • Billing system
TELTOHEART
TELTOHEART

END USER

  • Accurate heart monitoring on the go
  • Discreet, user-friendly device
  • Perform medical-grade ECG anytime and anywhere
  • Constant AFib monitoring with patented algorithm
  • Real-time heart health notifications
  • Share heart data remotely with your doctor
🔔
Alerts and notifications
📈
Patented Afib detection
TELTOHEART
👉
Easy control
❤️
Constant heart rate monitoring
🖥️
6-lead ECG

ALERTS AND NOTIFICATIONS

Constant monitoring of heart rate to instantly notify the user to record an ECG in case of any discrepancies.

CONTINUOUS HEART RATE MONITORING

PPG sensors allowing for timely detection of changes in blood circulation and continuous monitoring of heart rate.

ATRIAL FIBRILLATION DETECTION

Patented algorithm with high specificity in detecting atrial fibrillation.

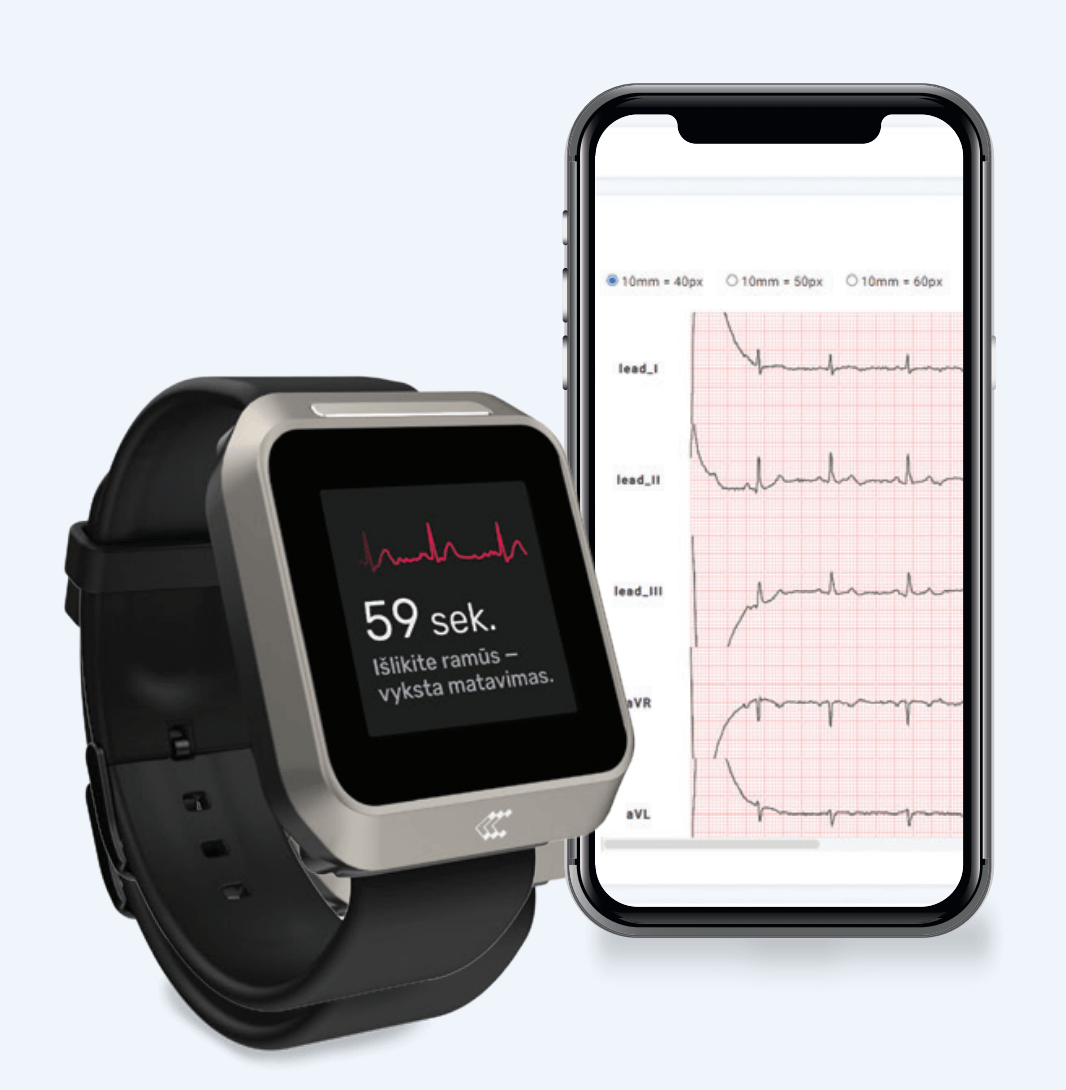

6-LEAD ECG RECORDING

High precision, medical-grade electrocardiogram recording for accurate and timely diagnosis.

The information does not constitute a binding description of TeltoHeart or its functionalities. TeltoHeart is under continuous development; therefore, any information provided here may be subject to change at Teltonika's sole discretion.

Teltonika Telemedic Device Specifications

Body

  • Dimensions: 40.5 x 47 x 14.7 mm
  • Weight: 52 g
  • Chip: nRF5340, 2x ARM Cortex M33
  • Platform: Zephyr RTOS

Display

  • Brightness: 250 NITS
  • Resolution: 240 x 240 px
  • Type: LCD TFT
  • Size: 1.3"
  • Cover Lens: Corning Gorilla Glass 3
  • Surface Hardness: > 8H
  • Display Area: 547.56 sq mm

TeltoHeart Memory

128 MB

Connectivity

Bluetooth: 5.3

Bluetooth Radio Performance

  • Frequency: 2402 MHz – 2480 MHz
  • Max Output Power: 3 dBm

Features

  • ECG sensors for electrocardsssiogram
  • PPG sensors for AFib detection
  • Heart rate monitoring
  • Low/High heart rate
  • Water resistant 1m (for 30 minutes)
  • IP67 ingress protection

Power Supply

  • Battery: 410 mAh, 1.56 Wh
  • Charging Voltage: 5 V
  • Operating Voltage: 3.8 V
  • Max Input Current: 0.5 A

Sensors and Components

  • Accelerometer
  • Gyroscope

Buttons

Side button (On/off, Restart, Back)

Straps

Material: Silicone with stainless-steel electrode

Available Strap Sizes

S, M, L (depends on purchased set)

Supported Peripherals

  • TeltoHeart charging dock
  • Android 10+ or iOS 14+ with CE USB-C adapter

Conditions for Use

  • Operating Temp: -10°C to +45°C
  • Charging Temp: 0°C to +45°C
  • Storage Temp: -20°C to +35°C (1 Month), -20°C to +30°C (6 Months)

PPG/ECG Specs

  • Continuous heart rate and AFib monitoring
  • 6-lead ECG measurement
  • Electrode location: bottom/top wristband

Atrial Fibrillation

  • Method: Non-invasive
  • Technology: PPG + ECG

Certificates

  • CE/RED, UKCA, FCC, IC, MDR (Approved)
  • FDA (Pending)

Wearable Health Monitoring

Connect Your Wearables with AirPal

  • - AirPal offers a comprehensive health monitoring solution that seamlessly integrates with your wearable devices.

  • - Our software app connects with wearables to provide real-time monitoring of vital signs, ensuring timely detection of any irregularities.

Connect Wearable

Product Details


Connect Your Wearables with AirPal

- AirPal offers a comprehensive health monitoring solution that seamlessly integrates with your wearable devices.

- Our software app connects with wearables to provide real-time monitoring of vital signs, ensuring timely detection of any irregularities.

Key Features

  • Real-time Monitoring: Track your vital signs, including heart rate, blood pressure, and oxygen levels, and more in real-time.

  • Alert System: Receive notifications for any unusual readings, allowing for prompt medical attention.

  • Data Insights: View your health data over time to identify trends and patterns.

Why Choose AirPal?

  • Interoperability: Our app connects with a wide range of wearable devices, giving you the flexibility to choose the one that best suits your needs.

  • Ease of Use: Our user-friendly interface makes it simple to monitor your health and track your progress.

  • Reliability: Our app is built with reliability in mind, ensuring that you can trust the data it provides.

Benefits of Wearable Integration

  • Improved Patient-Doctor Communication: Wearables help break down barriers between doctors and patients, providing real-time data for better diagnosis and treatment.

  • - Patient Engagement: Wearables encourage healthy lifestyles by tracking progress and sending reminders for exercise and medication.

  • Remote Monitoring: Wearables enable continuous monitoring of vital signs, allowing for timely intervention and improved patient outcomes.

  • Data Insights: Wearables provide valuable data for healthcare providers, enabling personalised treatment plans and improved patient care.

Get Started

Download our app today and start monitoring your health with ease.

Download App

Learn More

For more information on our wearable health monitoring solution, please visit our Contact Us page.

Contact Your Doctor

Need medical advice or have questions about your health? Contact your doctor through our telemedicine app for personalized guidance and support.

Connect Now

Don't wait to take control of your health. Subscribe to our wearable health monitoring device today and start monitoring your vital signs with ease.

How Are We Solving The problem?

Product Solution

  • Secure Video Consultation

  • Integrated Electronic Health Records (EHR)

  • Appointment Scheduling and Reminders

  • Prescription Management

  • Health Monitoring and Wearable Integration
